Machine Design and Dynamics
Aerosol extracting 4 bar linkage
For the machine dynamics course I developed a 4 bar linkage that could extract aerosol from a nicotine device
This project utilized MATLAB to develop graphs of the expected forces and acceleration in each joint, and components were sized to fit these forces
The project report goes more in depth on the project, including the MATLAB code results
Machine Design Crane Project

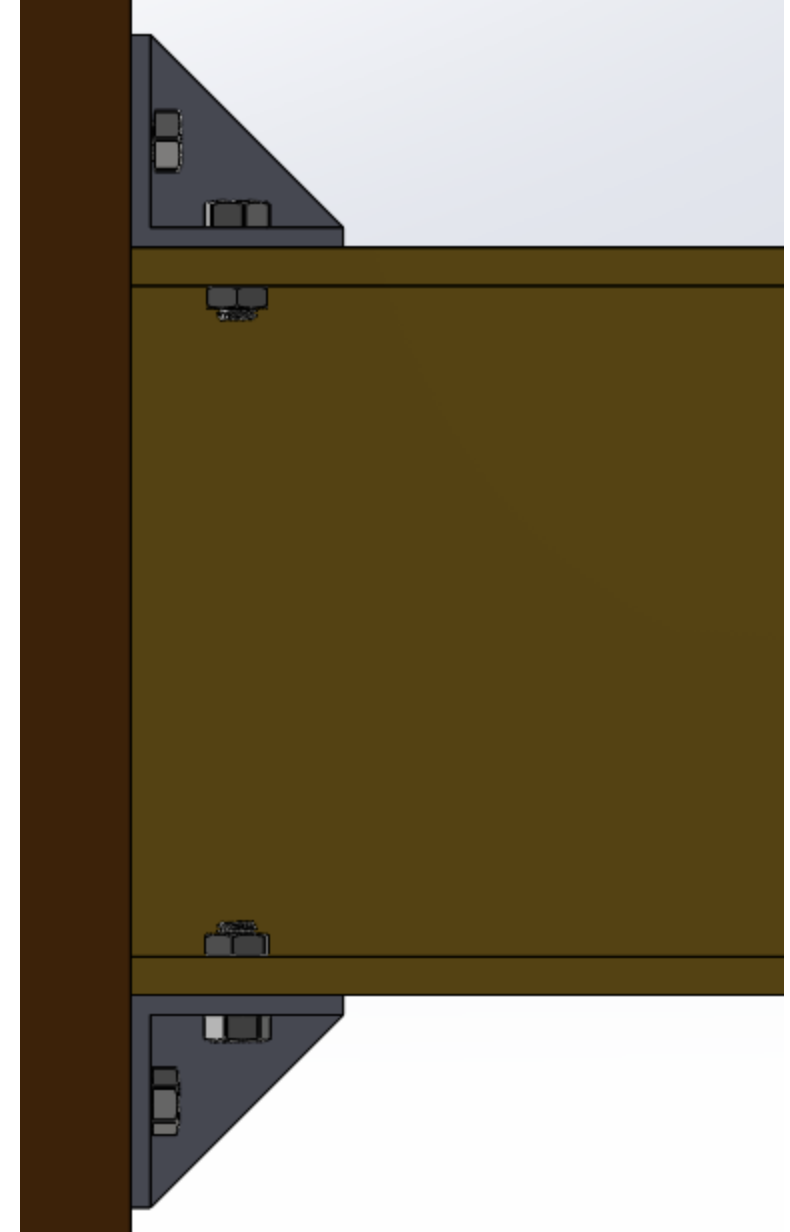

For the machine design course my group had to develop the necessary linkage sizes for a jib crane under certain load. We developed FBD diagrams and used MATLAB to generate the necessary sizes. I handled the CAD design of the project
The project report goes more in depth on the project
